32 Channel DMX/RDM LED Color Decoder LT-932-OLED

Part No: LT-932-OLED
Category: Tags: , , ,
Product Specs and Instructions PDF
489

$489.00

Product Description

The LT-932-OLED constant voltage 32-Channel DMX Decoder 3A per Channel is designed for professional Stage and theater use where multiple DMX outputs are required for LED Strips. The LT-932-OLED has multiple connection interface that includes RJ45, 3-pin XLR, 5 pin XLR and terminal block connections for DMX in and out. The terminal block connection also serves as a DMX signal amplifier to ensure data transmission (Cat 5) over long distances. OLED screen with button control is used for setting the DMX address and other operations. Four power inputs for Class 2 type LED drivers.

LT-932-OLED DMX Decoder Features

Converts standard DMX signals to PWM output for driving 12VDC or 24VDC LED lighting
32 x 3A channel power rating supports large installations up LED Strips
Works with 12V and 24V LED lights. Four power inputs
OLED screen with button control for easy access and setting the DMX address
Uses universal standard DMX512/1990 with 8 bit (256 levels) and 16 bit (65536 levels) grey scale output per channel, 0-100% brightness and various changing effect
RDM remote management protocol for the parameters browsing and setting, DMX address setting, equipment recognition operations

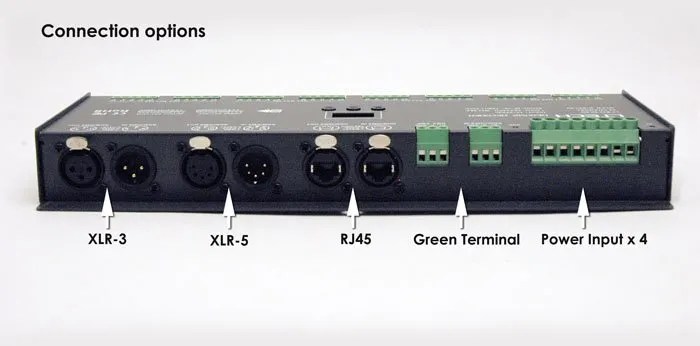

RJ45, 3-pin XLR, 5-pin XLR and terminal block connections for DMX signal in and out
Controls single color, CCT, RGB and RGBW LED fixtures
Terminal block DMX output includes a DMX signal amplifier
Rugged metal chassis with two sets of terminal screws for low voltage input power (capable of accepting 12 gauge wire)

Use only with LED World’s Regulated Class 2 power supplies. Do not use with magnetic dimmable power supply.

Important note: The maximum length of RGB/W LED Flex Strip attached to DMX Decoder should not exceed 20 linear feet (due to voltage drop resulting in color loss).

Technical Specifications

Input SignalDMX512 / RDM
Input VoltageDC12~DC24V (4 x power inputs)
Current load 3A x 32CH Max 96A
Output Power(0~36W~72W) x 32 Channel (max 2304W)
DMX512 SocketXLR-3, XLR-5, RJ45, Green terminal
Control modesDimming / CCT / RGB / RGBW
Dimming Curve0.1~9.9
Grey level8 bit (256 levels) / 16 bit (65536 levels)
Photoelectric IsolationYes
Working Temp-30°C~55°C (-22°F~131°F)
DimensionL 300mm x W 122mm x H 39mm (L 11.81″ x W 4.80″ x H 1.53″)
