LED Backlight Modules – STAR-F03X

Product Description

LED Backlight modules features a Samsung 2835 SMD LEDs. Featuring wide 160 degree angle of light for a close proximity to channel lettering covering while providing an even light output. The Korean made modules are sonic sealed IP68, encased in a white plastic housing with 18 AWG lead wire and double-sided 3M tape with screw mount option. Low power consumption of 1.2 watts and a high output of 100lm per module provide an energy-saving, durability and long lifespan of LED Back lighting for sign industry over other traditional lighting (non-LEDs).

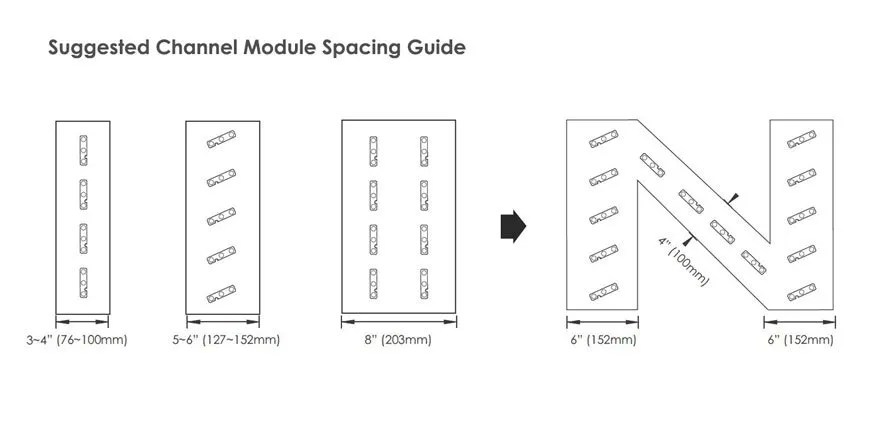

Star LED Backlight modules are available in Warm White (3000K) and Day White (6000K). Suitable for installation in channel lettering, box lighting and back lighting for indoor/outdoor use. The Star backlight modules can easily fit in shapes that are round or linear.


Applications

Ideal for indoor/outdoor use for sign lighting of bars sign, hotels sign, casinos etc.
Backlighting for signage letters, box lighting and channel letter lighting
Use to replace Neon for letter lighting
UL recognized component sign lighting (SAM)

Features

12 volts DC
Korean made
High powered LEDs with low power consumption
Low voltage, energy-efficient, virtually no maintenance
Each module can be cut to size
Operating temperature: -20°C ~ 45°C (-4°F ~ 113°F)
Long life span of LED lights, 40,000 hours+
Water resistant IP68 case Sonic Sealed
Adhesive back & screw mountable. Peel & stick

Technical Specifications

Max voltage12 VDC
Wattage1.2 Watts
Set Length24.6ft (7.5 meter)  / 50 Modules
Watt/Pack60 Watts (50 Modules)
Dimensions66.3(L) x 15.39(W) x 9.40(H)mm (2.61″ x 0.6″ x 0.37″)
Weight14g
HousingPC + ABS Sonic Sealed
LEDs TypeSamsung 2835 SMD LEDs
LED Angle160°
Color Temperature3000K(Warm White), 6000K (Day White)
Brightness100 lm/module
Max Modules50 Modules (18 AWG wire connected)
IP RatingIP68 (Water Resistant)
CertificationcRUus (UL)
Max Run50 Modules (3A) Do NOT exceed!

Power Supplies

  • 60W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-060VTDHV2

    Max Continuous Load60 W
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
  • 30W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-030VTDHV2

    Max Continuous Load30 W
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
  • 180W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-180VTD52JV2

    Max Continuous Load180W (3 Tap x 60W)
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
    $209.00
    Add to cart More Info
  • 300W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-300VTD52JV2

    Max Continuous Load300W (5 Tap x 60W)
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
    $279.00
    Add to cart More Info
  • Accessories

  • WAGO 221-412 Splicing Connector

    WAGO’s 221-412 COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 2-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $1.00
    Add to cart More Info
  • WAGO 221-413 Splicing Connector

    WAGO’s 221-413  COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 3-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $1.25
    Add to cart More Info
  • WAGO 221-415 Splicing Connector

    WAGO’s 221-415  COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 5-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $2.00
    Add to cart More Info
  • Reviews

    There are no reviews yet.

    Be the first to review “LED Backlight Modules – STAR-F03X”
