EvenBright LED Flexstrip FA240M20-3M-12V-X

12V EvenBright LED Strip
Part No: FA240M20-3M-12V-X
Category: Tags: , , , , ,
Product Technical Specifications
Product Instructions PDF
Sale!
59

$59.00

Clear
Roll Length : 9.8 ft (3 meter)

Product Description

New EvenBright LED Flex Strip packs 74 2016 SMD LEDs per foot. High density LEDs allow a very even and bright light (unlike the older 5050 SMD LEDs caused spotting). The Quattro Bright series 12VDC LED strip features a high-powered 2016 LED has a high lumen output of up to 90 to 100 lumens per watt. The dimmable LED Strip is available in Deep Warm White (2700K), Warm White (3000K), Neutral white (4100K ~ 4200K) and Pure white (5200K ~ 5300K) with a coloring rendering index (CRI) of 90 or better. High CRI means better color definition in Jewellery display cases, food display cabinets and under cabinet lighting.

Type A EvenBright LED Flex Strip FA240M20-3M-12V-X is suitable for dry locations use. It comes in 3 meters long (9.84 feet) long roll.

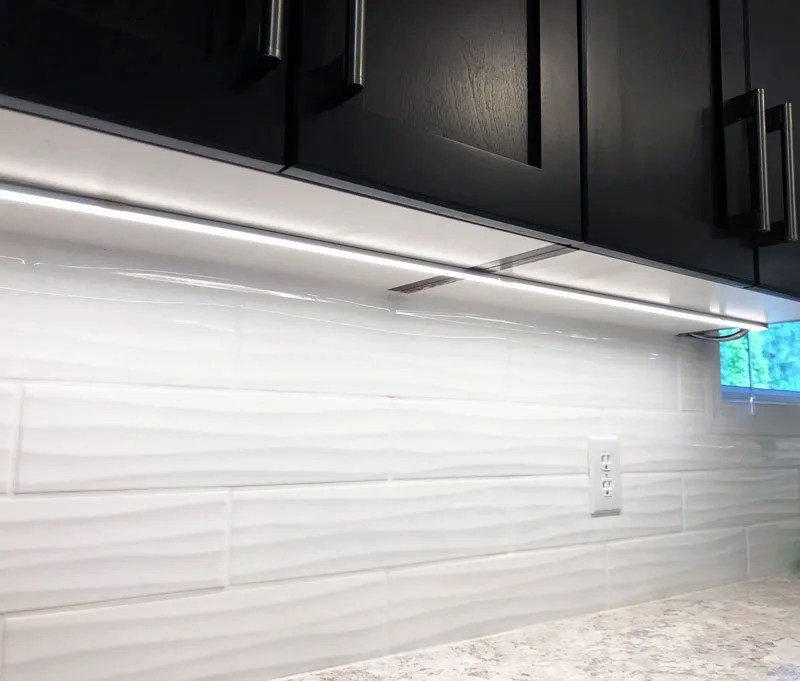

In addition, our EvenBright LED Flex Strip is designed for architectural lighting, concealed lighting, perimeter lighting and many other applications. Ideal for lighting where LED dots are not wanted to be seen when mounted in the optional Aluminum Profile. LED Flex Strip Lighting has a 3M tape backing for easy installation. Our Flex Strips come with lead wires to enable easy connection to the Class 2 LED Power supply.

The 10mm (3/8”) wide LED Strip can be easily mounted into LED World’s Aluminum profiles. Hence, its small size and low voltage makes this lighting ideal for a wide range of applications. Strip can be cut-able at each 3 LED (12VDC) intervals at marking points only.

Use EvenBright FA240M20-3M-12V-X LED Strip with LED World’s Aluminum profiles for better heat dissipation.

Note: This product requires an optional Class 2 Power Supply (not included).

Note: Accessories are not included with this product. See Accessories tab.

EvenBright LED Flexstrip Features

Even lighting, High density LEDs
Dimmable LED Strip
View angle 120°
Double sided 3M tape backing, UL recognized PCBs
Ultra bright surface mount LEDs
CRI 90 or better
Epistar super bright LEDs
No RF interference
Long life of LEDs, LM-80 tested LEDs, 6000H testing at 55°C
Can be cut to size at marked intervals only

Product Video

Technical Specifications

Watts/foot4.3 W/ft
Max Voltage12 VDC (Regulated/Class 2)
Amps/Roll3.75
Brightness430-460 Lumens / ft (30.5cm)
Roll Size3 Meters (9.8 Feet)
Light Source240pcs/meter (39.37″) 2016 SMD LED
Dimensions3000(L) x 10(W) x 1.0(H)mm (9.8′ x 25/64″ x 3/100″)
LEDs Type2016 SMD LED
LED Angle120°
Bend Radius4″(100mm) Max, one flat plane
Lamp Life>30,000 hours estimated average*
MountSmooth Surface/burrows free, Aluminum Profile (ambient temperature)
Operating Temperature-25°C ~ +40°C (-13°F ~ 104°F)

Dimmable LED Drivers

  • 30W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-030VTDHV2

    12VDC 30W MD-012-030VTDHV2
    Max Continuous Load30 W
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
    $58.50
    Add to cart More Info

  • 60W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-060VTDHV2

    12VDC 60W MD-012-060VTDHV2
    Max Continuous Load60 W
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
    $98.50
    Add to cart More Info

  • 180W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-180VTD52JV2

    12VDC 180W MD-012-180VTD52JV2
    Max Continuous Load180W (3 Tap x 60W)
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
    $209.00
    Add to cart More Info

  • 300W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-300VTD52JV2

    12VDC 300W MD-012-300VTD52JV2
    Max Continuous Load300W (5 Tap x 60W)
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
    $279.00
    Add to cart More Info

    • Regulated LED Drivers

  • 60W 12VDC Class 2 LED Power Supply YHY-12005000

    Max Load60W (48W continuous)
    Input Voltage100-240V
    Power Supply TypeRegulated Class 2 (Indoor use)
    CertificationscULus
    Driver with barrel type connector for easy plug in and connect
    $28.50 – $31.50 Select options
    More Info

    • Aluminum Channel

  • Standard Aluminum LED Channel AC-1707

    Standard Channel AC-1707
    Available Lengths1 meter(3.28ft), 2 meter(6.56ft)
    Size17.5mm (0.68″) x 7mm (0.27″)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    Lens meets UL V-0 standard.
    $8.25 – $16.50 Select options
    More Info

  • Wide Standard Aluminum Channel AC-2310

    Available Lengths1 meter (3.28ft), 2 meter (6.56ft)
    Size23.5mm (0.92″) x 11mm (0.43″)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    $11.75 – $23.50 Select options
    More Info

  • Corner Round Aluminum LED Channel AC-LA01

    Available Lengths1 meter (3.28ft), 2 meter(6.56ft)
    SizeW 16mm (0.62″) x H 16mm (0.62″)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    $11.50 – $19.00 Select options
    More Info
  • New

    Corner Cove Aluminum LED Channel AC-3030G

    Lengths1 meter (3.28ft), 2 meter (6.56ft)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    Note: Minimum 5 Qty required for 2 meter (6.56ft) Aluminum Profile.
    $12.50 – $25.00 Select options
    More Info

  • Recessed Aluminum LED Channel AC-AR1-XM

    Length1 meter, 2 meter (3.28ft, 6.56ft)
    Size17.1mm x 8.6mm (0.67″ x 0.33″)
    Included ItemsOpaque lens, End cap pair
    $11.50 – $23.00 Select options
    More Info
  • New

    Drywall Aluminum LED Channel AC-501520-2M

    Lengths2 meter (6.56ft)
    Included ItemsOpaque lens
    Note: Purchase requires minimum 5 qty
    $28.50 Select options
    More Info

  • Round Aluminum LED Channel AC-R008

    Lengths1 meter (3.28ft), 2 meter (6.56ft)
    Size ø 20.8
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    $19.00 – $38.00 Select options
    More Info

    • Accessories

  • 2 Pin Strip to Power Clear Connectors – BCI10XB-2W

    BCI10XB-2W clear connector makes it easy to connect single color 10mm wide LED strip to power in a narrow space. Connector length is 6.29″ (160mm). Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered).

    Package includes 5pcs
    $8.75
    Add to cart More Info
  • New

    2 Pin Strip to Strip Clear Connectors – BCI10BB-2

    BCI10BB-2 Clear connector makes it easy to join two single color 10mm wide LED strips together in a narrow space. This transparent connector makes strip lighting seamless. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $8.50
    Add to cart More Info

  • 2 Pin Strip to Power Clamp Connector – CL10XB-2G

    CL10XB-2G connector makes it easy to connect single color 10mm wide LED strip to wire. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $8.50
    Add to cart More Info

  • 2 Pin Strip to Strip Clamp Connector – CL10BB-2G

    CL10BB-2G connector makes it easy to join two single color 10mm wide LED strips together. This transparent connector makes strip lighting seamless. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $8.50
    Add to cart More Info

  • Mini 2 Pin Strip to Strip Clamp Connector – CL10BB-2

    Mini CL10BB-2 connector makes it easy to join two single color 10mm wide LED strips together in a narrow space. This transparent connector makes strip lighting seamless. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $8.75
    Add to cart More Info

  • T Connector for Single Color Strip – S10-T2A

    S10-T2A 10mm T shape connector with cut marks for easy custom angle connection. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 3.5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $3.50
    Add to cart More Info

  • WAGO 221-412 Splicing Connector

    WAGO 221-412 splicing connector

    WAGO’s 221-412 COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 2-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $1.00
    Add to cart More Info

  • WAGO 221-413 Splicing Connector

    WAGO’s 221-413  COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 3-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $1.25
    Add to cart More Info

  • WAGO 221-415 Splicing Connector

    WAGO’s 221-415  COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 5-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $2.00
    Add to cart More Info

  • WAGO H05-415 Cable Connector

    Low voltage cable connector with 4 terminals lever clamps to connect wire to DC male end 2.1 x 5.5mm

    $8.75
    Add to cart More Info

  • LED Low Voltage Mini Dimmer DIM-2430A

    Max Voltage12V~24VDC (Class 2 regulated)
    Output1 channel 30-Amps (peak)
    DimensionL 86 x W 60 x H 35 mm (3.46″ L x 2.36″ W x 1.37″ H)
    Brightness0% to 100%
    $21.50
    Add to cart More Info

  • H05 Power Connector

    Low voltage 20″ DC connector with one 2.1 x 5.5mm DC Plug Female at one end and two pigtail wires, red (+) and black (-) at the other end.

    $3.25
    Add to cart More Info
