No Spot COB Lighting EvenBright LED Flexstrip HH-SCOBX-528-12

12VDC COB Strip
Part No: HH-SCOBX-528-12
Category: Tags: , ,
Product Specifications PDF
Product Instructions PDF
46

$46.00

Clear
Roll Length : 5 meter (16.4ft)

Product Description

New LED COB (Chips On Board) Strips incorporates a new LED packaging technology where Multiple LED Chips are packaged tightly together with layer of phosphor coating lens for a spot free even lighting with a wide beam angle. The low voltage (12VDC) LED Strip Light creates a dot free light without a channel profile cover. However, a channel cover is always recommended as a protection from accidental damage. Easy smooth dimming with our optional Class 2 dimmable LED drivers. Available in multiple color options.

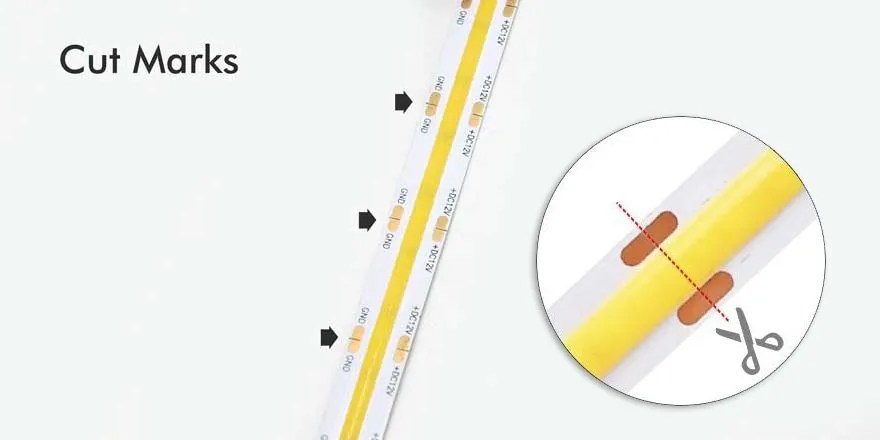

No Spot COB Flex Strip lighting is cut-able at marked intervals (22.7mm/0.89″) and comes in 5 meter (16.4 feet) roll. It has 3M tape backing for easy installation. It is suitable for dry locations use. Mountable onto most flat, clean dry surfaces (ambient temperature) free of burrows, The LED Strips come with lead wires to be powered with our Class 2 power supply.

Ideal for use in many applications: Under cabinet lighting, architectural lighting, concealed lighting and many other applications. The small size, low voltage and higher light distribution angle (180°) make No Spot COB Flex Strip the ideal light.

Connecting COB Strip to Clear connector video: Click Here
Connecting COB Strip to Clamp connector video: Click Here

Note: This product requires an optional Class 2 Power Supply (not included).

Note: Accessories are not included with this product. See Accessories tab.

COB LED Strip Light Features

Phosphor layer Lens on top of LEDs to remove spotting effect
Built-in linear light diffusion for even no spot lighting
Dimmable via LED World’s optional dimming solutions
Double sided 3M tape
Low power consumption and little heat produced
Flexible LED light strips
Long life of high output LEDs
Solid state lighting
CRI 90>

Technical Specifications

Watt foot3.0 W/ft
Max Voltage12 VDC (regulated)
AMPs/Roll4.1 Amps
Brightness280-300  Lumens / ft
Roll Size5 Meters (16.4 feet)
Light SourceCOB LED
Dimensions5000(L) x 10(W) x 1.6(H)mm (16.4′ x 0.39″ x 0.07″)
Max Length5 Meters (16.4 feet)
LED Angle180°
Lamp Life>16,000 hours estimated average*
IP RatingIP20 type A
MountSmooth Clean Surface – burrows free (ambient temperature)
Operating Temperature-25°C ~ +40°C (-13°F ~ +104°F)

Dimmable LED Drivers

  • 60W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-060VTDHV2

    12VDC 60W MD-012-060VTDHV2
    Max Continuous Load60 W
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
    $98.50 Out of Stock More Info

  • 30W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-030VTDHV2

    12VDC 30W MD-012-030VTDHV2
    Max Continuous Load30 W
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
    $64.50 Out of Stock More Info

  • 180W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-180VTD52JV2

    12VDC 180W MD-012-180VTD52JV2
    Max Continuous Load180W (3 Tap x 60W)
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
    $209.00
    Add to cart More Info

  • 300W 12VDC Class 2 Triac/0-10V Dimmable LED Driver MD-012-300VTD52JV2

    12VDC 300W MD-012-300VTD52JV2
    Max Continuous Load300W (5 Tap x 60W)
    Voltage12 VDC Output / 100~277 VAC Input
    Power Supply TypeRegulated Class 2 (Indoor/Outdoor use)
    All in 1 series is compatible with Forward phase, Magnetic low voltage, Triac and 0-10V dimmers
    $279.00
    Add to cart More Info

    • Regulated LED Drivers

  • 60W 12VDC Class 2 LED Power Supply YHY-12005000

    Max Load60W (48W continuous)
    Input Voltage100-240V
    Power Supply TypeRegulated Class 2 (Indoor use)
    CertificationscULus
    Driver with barrel type connector for easy plug in and connect
    $28.50 – $31.50 Select options
    More Info

    • Aluminum Channel

  • Standard Aluminum LED Channel AC-1707

    Standard Channel AC-1707
    Available Lengths1 meter(3.28ft), 2 meter(6.56ft)
    Size17.5mm (0.68″) x 7mm (0.27″)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    Lens meets UL V-0 standard.
    $8.25 – $16.50 Select options
    More Info

  • Wide Standard Aluminum Channel AC-2310

    Available Lengths1 meter (3.28ft), 2 meter (6.56ft)
    Size23.5mm (0.92″) x 11mm (0.43″)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    $11.75 – $23.50 Select options
    More Info

  • Corner Round Aluminum LED Channel AC-LA01

    Available Lengths1 meter (3.28ft), 2 meter(6.56ft)
    SizeW 16mm (0.62″) x H 16mm (0.62″)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    $11.50 – $19.00 Select options
    More Info

  • Corner Cove Aluminum LED Channel AC-3030G

    Lengths1 meter (3.28ft), 2 meter (6.56ft)
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    Note: Minimum 5 Qty required for 2 meter (6.56ft) Aluminum Profile.
    $12.50 – $25.00 Select options
    More Info

  • Recessed Aluminum LED Channel AC-AR1-XM

    Length1 meter, 2 meter (3.28ft, 6.56ft)
    Size17.1mm x 8.6mm (0.67″ x 0.33″)
    Included ItemsOpaque lens, End cap pair
    $11.50 – $23.00 Select options
    More Info

  • Drywall Aluminum LED Channel AC-501520-2M

    Lengths2 meter (6.56ft)
    Included ItemsOpaque lens
    Note: Purchase requires minimum 5 qty
    $28.50 Select options
    More Info

  • Round Aluminum LED Channel AC-R008

    Lengths1 meter (3.28ft), 2 meter (6.56ft)
    Size ø 20.8
    Included ItemsOpaque lens, Mounting clip pair, End cap pair
    $19.00 – $38.00 Select options
    More Info

    • Accessories

  • New

    Clear Dice Strip to Wire Connector SF10XB-2G

    SF10XB-2G screw connector makes it easy to attach two pigtail wires to a single color 10mm wide LED strips. Easily attaches to 18 or 20 UL/CSA AWG stranded wire. The kit includes 5 connectors and a mini screw driver.

    Package includes 5pcs
    $10.75
    Add to cart More Info
  • New

    Clear Dice Strip to Strip Connector SF10BB-2G

    Clear dice connector makes it easy to join two single color 10mm wide LED strips together and make secure connection. The kit comes with 5 connectors and a mini screw driver.

    Package includes 5pcs
    $11.50
    Add to cart More Info
  • New

    Clear Dice Strip to Strip Corner Connector SF10TL2

    Screw connector makes it easy to join two single color 10mm wide LED strips at corner together and make secure connection. The kit comes with 5 connectors and a mini screw driver.

    Package includes 5pcs
    $10.75
    Add to cart More Info

  • 2 Pin Strip to Power Clear Connectors – BCI10XB-2W

    BCI10XB-2W clear connector makes it easy to connect single color 10mm wide LED strip to power in a narrow space. Connector length is 6.29″ (160mm). Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered).

    Package includes 5pcs
    $8.75
    Add to cart More Info
  • New

    2 Pin Strip to Strip Clear Connectors – BCI10BB-2

    BCI10BB-2 Clear connector makes it easy to join two single color 10mm wide LED strips together in a narrow space. This transparent connector makes strip lighting seamless. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $8.50
    Add to cart More Info

  • 2 Pin Strip to Power Clamp Connector – CL10XB-2G

    CL10XB-2G connector makes it easy to connect single color 10mm wide LED strip to wire. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $8.50
    Add to cart More Info

  • 2 Pin Strip to Strip Clamp Connector – CL10BB-2G

    CL10BB-2G connector makes it easy to join two single color 10mm wide LED strips together. This transparent connector makes strip lighting seamless. Use only with LED World’s 10mm wide Type A (IP20) Flex Strip (Not silicone coated or covered). Max 5 Amps, 12/24V DC. Use only with Class 2 power supply. Indoor dry location use.

    Package includes 5pcs
    $8.50
    Add to cart More Info

  • WAGO 221-412 Splicing Connector

    WAGO 221-412 splicing connector

    WAGO’s 221-412 COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 2-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $1.00
    Add to cart More Info

  • WAGO 221-413 Splicing Connector

    WAGO’s 221-413  COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 3-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $1.25
    Add to cart More Info

  • WAGO 221-415 Splicing Connector

    WAGO’s 221-415  COMPACT Splicing Connector is 40 % smaller than the 222 Series.  Accommodate 5-wire connections with stranded wires from 0.14 to 4 mm², as well as solid and fine-stranded wires from 0.2 to 4 mm² (24–12 AWG).

    $2.00
    Add to cart More Info

  • WAGO H05-415 Cable Connector

    Low voltage cable connector with 4 terminals lever clamps to connect wire to DC male end 2.1 x 5.5mm

    $8.75
    Add to cart More Info

  • LED Low Voltage Mini Dimmer DIM-2430A

    Max Voltage12V~24VDC (Class 2 regulated)
    Output1 channel 30-Amps (peak)
    DimensionL 86 x W 60 x H 35 mm (3.46″ L x 2.36″ W x 1.37″ H)
    Brightness0% to 100%
    $23.50
    Add to cart More Info

  • H05 Power Connector

    Low voltage 20″ DC connector with one 2.1 x 5.5mm DC Plug Female at one end and two pigtail wires, red (+) and black (-) at the other end.

    $3.25
    Add to cart More Info
