Outdoor 50ft Long 24VDC LED Flexstrip Light – FC60M28-15.2M-24V-X

Product Description

All new outdoor rated 24VDC Long Run Series LED Flex Strip Light FC0M28-15.2M-24V-X comes in 50ft (15.2m) length roll.  Featuring 2835 SMD LED, which is 40% brighter than the 3528 LED. Also, it has a high lumen output of up to 90 lumens per watt. The dimmable long run LED Flex Strip Light is available in Neutral white (4200K) and Warm White (3000K). Cut the low voltage (24VDC) LED strip at marked intervals (at each 6 LEDs).  It comes in a silicone jacket makes it suitable for dry and damp indoor/outdoor locations. It has a 3M tape backing for easy installation. Easily mount the LED Strip into LED World’s optional Aluminum Channel profiles. In addition, all of our Flex Strips come with 12″ (30.5cm) lead wires to be powered with our Class 2 power supply.

Size of roll and maximum length: 15.2 meter (50 feet) roll.

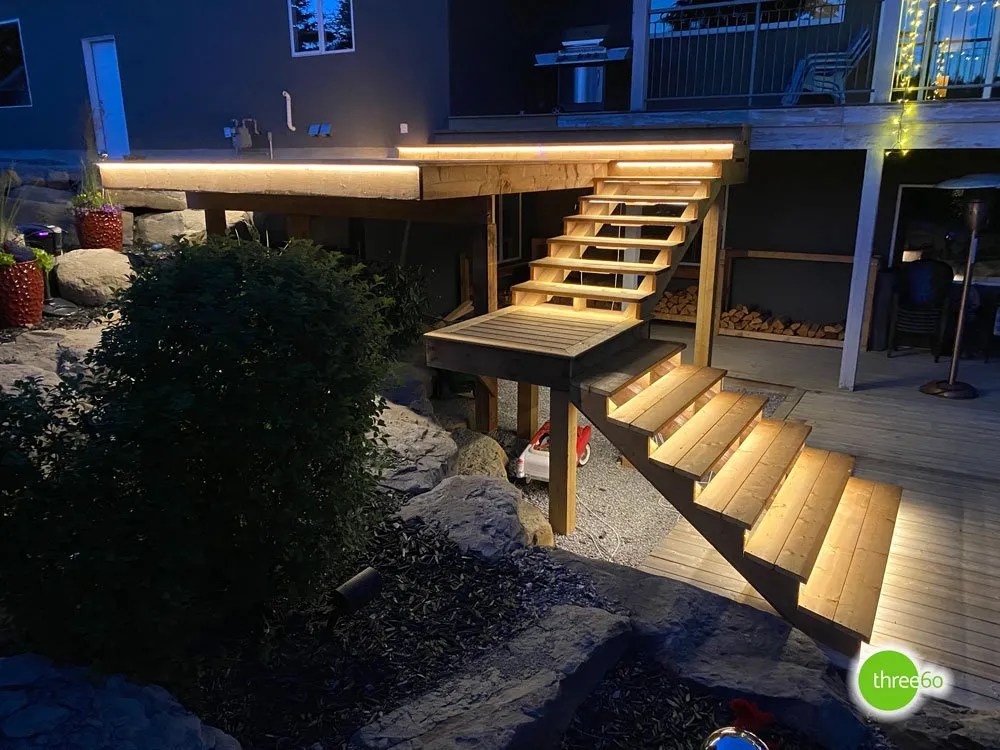

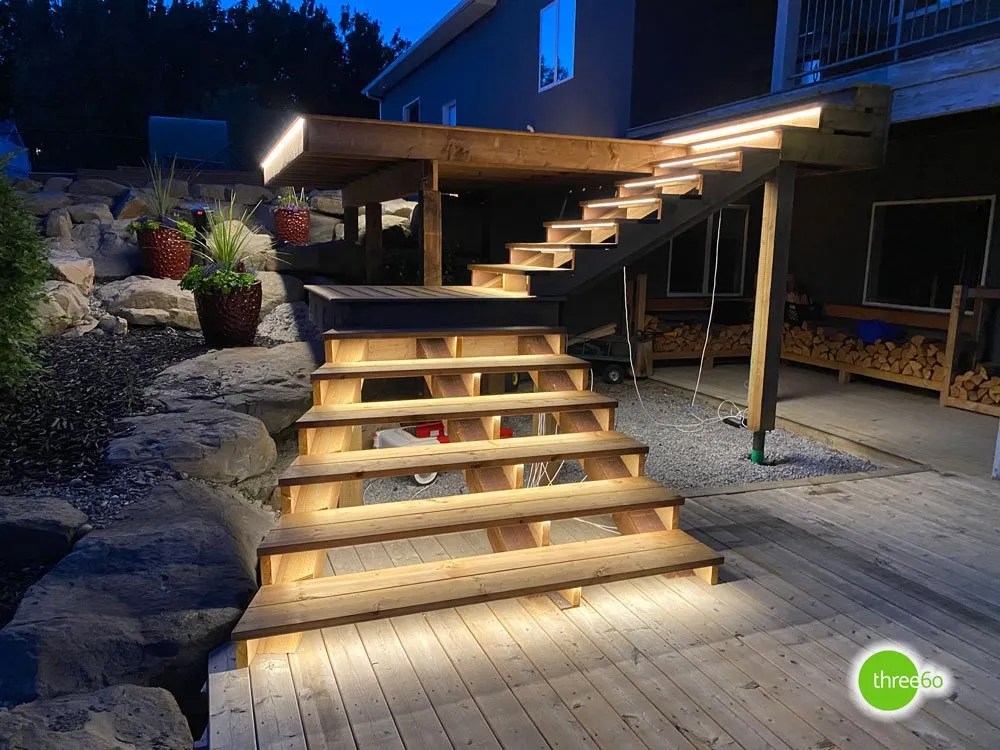

LED World’s 50ft Long 24VDC LED Flex Strip Light can be used for architectural lighting, cove lighting and many other applications where long continuous run required. Also can be cut at marked intervals for custom lighting requirements.

LED Strip available in Warm White and Neutral White Color.

Note: This product requires an optional Class 2 Power Supply (not included).

Note: Accessories are not included with this product. See Accessories tab.


Features

Continuous 50ft (15.2m) long run
Dimmable via LED World’s optional dimming solutions
Double sided 3M tape
Constant Brightness
Low power consumption and little heat produced
Flexible outdoor rated LED light strips
Long life of high output LEDs
Solid state lighting
Super Bright 2835 SMD LEDs

Technical Specifications

Watt foot1.5 W/ft
Max Voltage24 VDC (regulated)
AMPs/Roll3.19 Amps
Brightness130-140 Lumens / ft
Roll Size15.2 Meters (50 feet)
Light Source60pcs/meter (39.37″) 2835 SMD LED
Dimensions15200(L) x 10(W) x 1(H)mm (50′ x 25/64″ x 0.03″)
Max Length15.2 Meters (50 feet)
LED Angle120°
Lamp Life>40,000 hours estimated average*
IP RatingIP64 Type C
MountSmooth Clean Surface – burrows free (ambient temperature)
Operating Temperature-25°C ~ +40°C (-13°F ~ +104°F)
CertificationscULus listed
