RGBW LED COB Strip FCOB-5M-840-24V-RGBW

Product Description

All new 24VDC color changing RGBW COB LED Flex Strip features COB LEDs for no spot color changing lighting with improved heat dissipation and longer life of LEDs. RGBW COB LED Flex Strip roll comes in a  16.4 feet (5 meters) long roll in a flexible ultra-thin strip with a 3M adhesive backing for easy mounting. Use with LED World’s optional HUEDA™ DMX Color Controller.

RGBW COB LED Strip is ideal for use in applications such as color changing architectural lighting, sign letter lighting, color cove lighting, bar lighting and many more.

Type A is suitable for indoor use in dry location. It has a peel and stick double-sided adhesive backing. It is recommended that RGBW LED Strip must be installed in the optional Aluminum Channel to extend the life of the LEDs. In addition, our RGB LED strip is cuttable at marked intervals. Please carefully read instructions before installing.

Note: This product requires an optional Class 2 Power Supply and Color Controller (not included).

Note: Accessories are not included with this product. See Accessories tab.


RGBW LED COB Strip Features

Phosphor layer on the top of LEDs to stop light dots
Better heat dissipation
View Angle 180°
Color changing RGBW COB strip

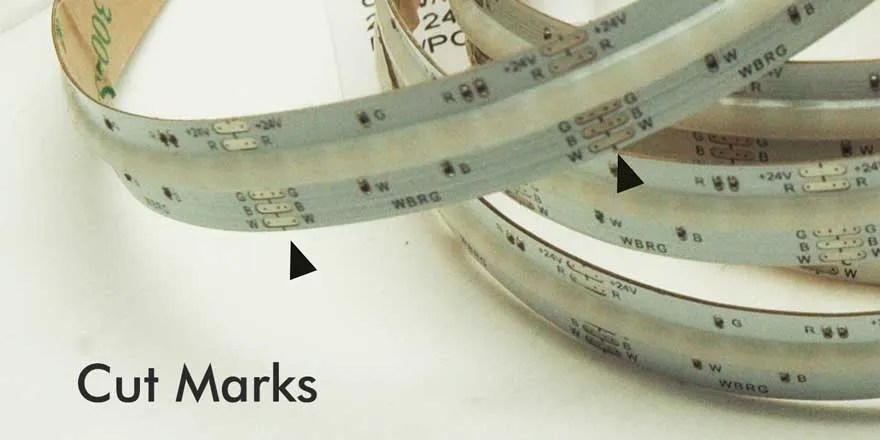

Can be cut to size at marked intervals and rejoined by experienced personnel
Operating temperature: -25°C ~ 40°C (-13°F ~ 104°F)
Long life span of LED lights of up to 25,000 hours +

Technical Specifications

Watt foot5.5 Watts/ft
Max Voltage24 VDC (Regulated/Class 2)
Amps/Roll3.75 Amps
Roll Size5m (16.4 ft)
Light Source840 pcs/meter (39.37″) Flip Chip RGB COB LED
Dimensions5000(L) x 12(W) x 1.8(H)mm (16.4′ x 0.47″ x 0.07″)
LEDs TypeCOB LED
LED Angle180°
Mounting3M Adhesive Tape, Type A
Lamp Life>25,000 hours (70% Lumen Maintenance)
Operating Temperature-25°C ~ +40°C  (-13°F ~ 104°F)
